Feed Screw and Half-Nut

The Feed Screw is a long horizontal driveshaft that allows the Saddle to be driven automatically along the Ways in the X-axis.

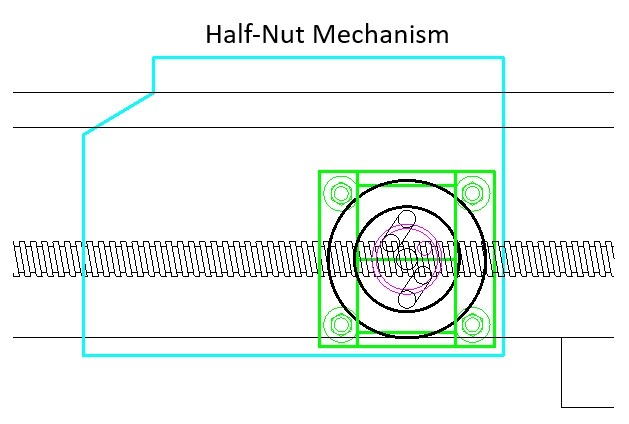

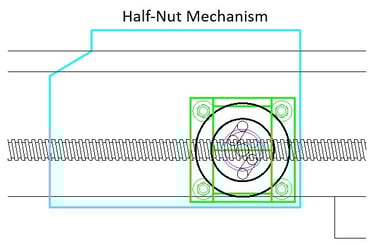

The Apron houses the Half-Nut mechanism that allows a split nut to open or close around the rotating Feed Screw. The Feed Screw can be driven either by gears from the Spindle and/or a speed controllable motor. The drive can be as simple as a windscreen wiper motor, with a 12 volt DC controller, or as complex as a box of electronics controlling the Feed Screw via a stepper motor.

We will send you a free copy of these Lathe Design Notes (PDF file)
by entering your Name and Email below ...or you can visit the My Store pages and download from there ...

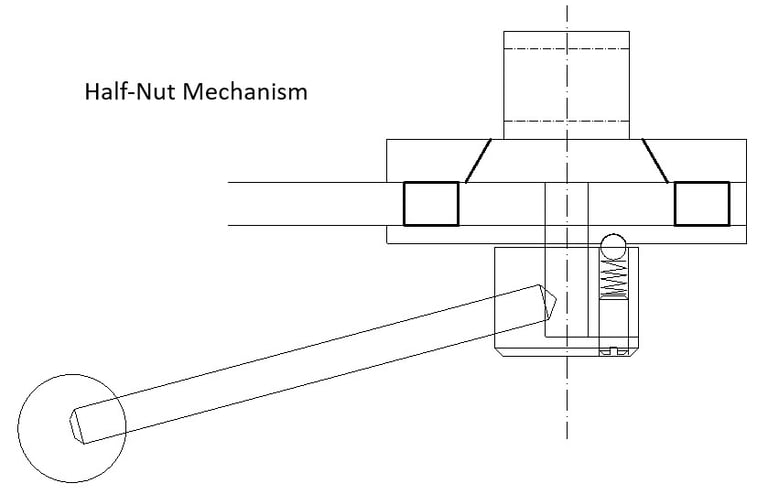

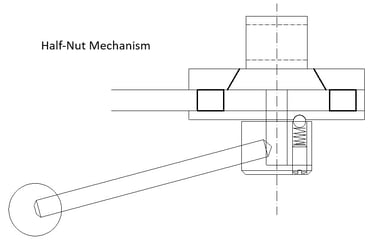

There are various ‘Half Nut’ mechanism designs around. Having studied those found, it is my feeling that the classic ‘cam plate’ that opens and closes half-nut plates in a dovetailed housing, as used in factory-built lathes, is the tried and proven method. The used of CAD drawing allows us to accurately design the cam plate to give the required half-nut movement.
