Motor and Mount

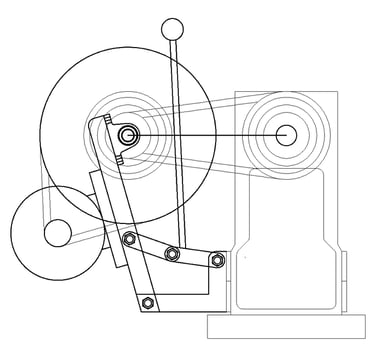

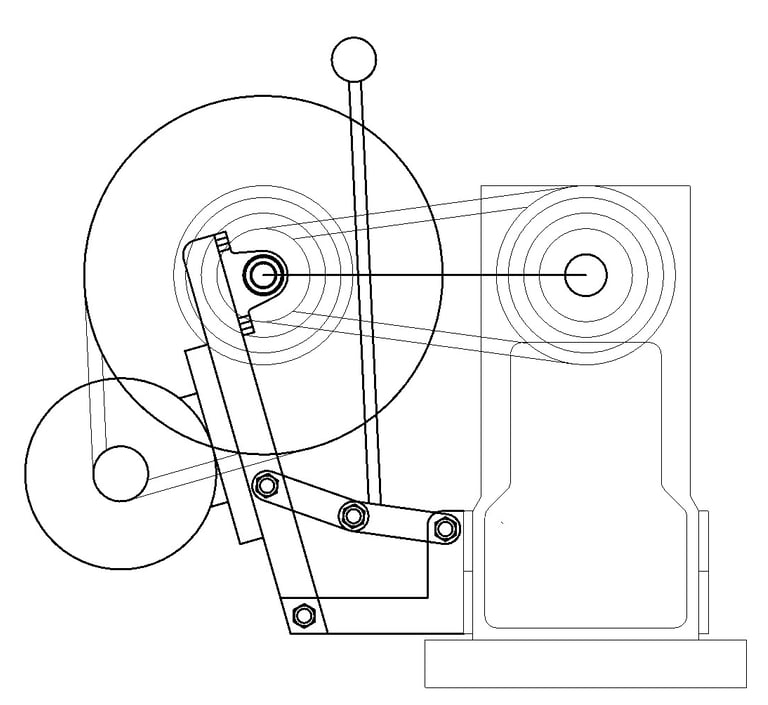

A V-belt pulley on the motor will drive a larger pulley on a lay shaft. This is the primary reduction of the motor shaft speed, and two speeds would be easily achieved.

A motor of 1 to 2hp should be adequate, although a compact motor up to 3hp could be considered, if it was found that more power was desirable.

A slow speed motor (e.g. 1440-rpm) would be better if readily available, otherwise a larger lay shaft pulley would be required to reduce the speed of say a 3000-rpm motor to more usable rpms.

The lay shaft has a four step V-belt pulley that will drive a corresponding four step pulley on the Spindle. This arrangement would give the option of 8 speeds.

An over-centre mechanism will allow for quick belt position changes.

We will send you a free copy of these Lathe Design Notes (PDF file)
by entering your Name and Email below ...or you can visit the My Store pages and download from there ...

There is always the option of a speed-controlled DC motor. Because the motor and mount components are separate from the lathe machine, many arrangements are possible, depending on the motor available. One could begin with a cheaper rudimentary setup, then upgrade as required.
