Toolpost

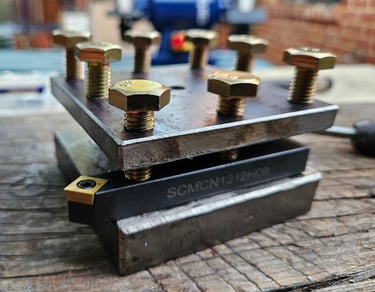

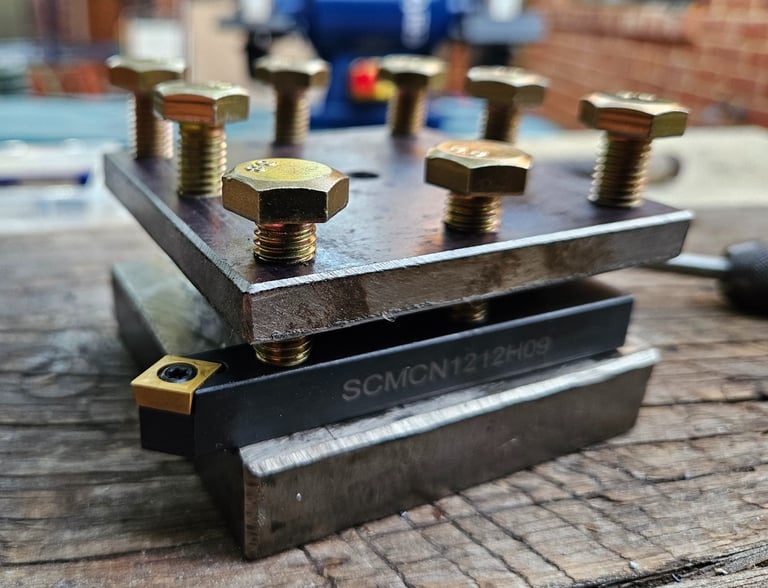

A 4-way Tool Post has already been fabricated for use with the X-Y table in the ‘wood lathe setup’. It was made from 10x100mm flat bar, and the stack of 5 pieces took a fair amount of cutting, grinding and welding. The end result worked very well.

We will send you a free copy of these Lathe Design Notes (PDF file)
by entering your Name and Email below ...or you can visit the My Store pages and download from there ...

A far better arrangement is to have only 3 plates, laser-cut from 20mm and 12mm plate.

The Tool Post can be directly mounted onto the Cross Slide using the tee slots or mounted to the Compound Slide.

The popular ‘quick-change’ style Tool Post can be added later, either as a further project or as a purchased item.
